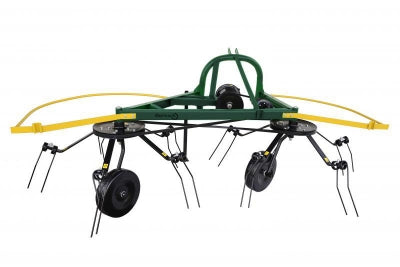

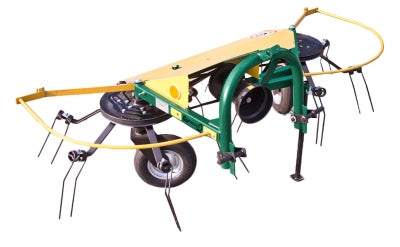

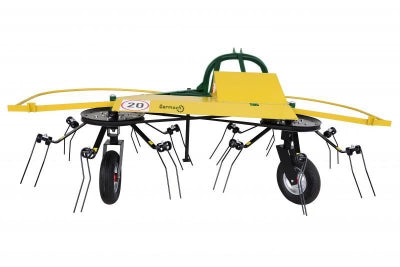

The G-6 rotary tedder is a specialized machine for efficiently tedding freshly mown greens and drying hay. Equipped with two rotors with six spring-loaded double tines (8.5 mm) each, it offers a working width of 2.63 m and a throughput of up to 3.2 ha/h at a speed of 6-12 km/h. Mounted on a three-point linkage, powered by a PTO (540 rpm), it requires a minimum class 0.6 tractor with 10 kW of power. It weighs 170 kg and measures 1480 × 2630 × 1100 mm, with a permissible transport speed of up to 25 km/h.
Product Features
The G-6 rotary tedder is a specialized agricultural implement designed for effective tedding and drying of plant material. It:
It has been specifically designed for working with low-stemmed green crops and dried hay.
It is equipped with two efficient rotors, each with 6 raking arms with double, spring-loaded tines.
It enables gentle and even spreading and rotation of the mowed crop, accelerating the drying process.
It is mounted on a three-point hitch system, ensuring a stable connection to the tractor.
It consists of a robust frame made of welded profiles, beams, and flat bars.
It features an efficient steering system and a safety guard.
It is driven by the tractor's power take-off (PTO) via an articulated telescopic shaft and a belt drive.
It is equipped with two wheels with 4.80/4.00-8 tires for stable operation in the field.
It offers a working width of 2.63 meters. ensuring high work efficiency
Compatible with tractors of class 0.6 and higher, with a minimum power of 10 kW
Product benefits
Using the G-6 rotary tedder on your farm brings a number of tangible benefits:
Significant acceleration of the hay drying process by gently spreading and turning the material
Improving the quality of the dried material thanks to uniform aeration
High work efficiency – the ability to tedder up to 3.2 ha/h at an operating speed of 6-12 km/h
Cost optimization thanks to compatibility with tractors of lower power (from class 0.6)
Spring-resistant double tines effectively pick up the material without damaging the plants
Solid, durable construction ensures long-term operation in changing conditions
Compact dimensions (1480 × 2630 × 1100 mm) facilitate maneuvering and storage
The ability to transport at speeds of up to 25 km/h reduces travel time between fields
Easy operation and Maintenance thanks to a well-thought-out design and easy access to parts
Ability to work with various crop types, increasing the machine's versatility
Technical Specifications
Type of Machine: Rotary Tedder
Model: G-6
Machine Type: Mounted
Operating Parameters:
Working Width: 2.63 m
Working Speed: 6-12 km/h
Capacity: Up to 3.2 ha/h
Transport Speed: Up to 25 km/h
Design:
Number of Rotors: 2
Rotor Wheelbase: 1350 mm
Rake Wheel Diameter: 1280 mm
Number of Rake Arms in the Rotor: 6
Tine Type: Spring-Loaded, Double
Spring Tines Wheelbase: 95 mm
Spring Tines Diameter: 8.5 mm
Traction System:
Number of Wheels: 2
Tires: 4.80/4.00-8
Drive:
Power source: Tractor PTO
Transmission: Belt drive
Required PTO speed: 540 rpm
Rotor speed: 270 rpm
Requirements:
Power requirement: 10 kW
Tractor class: Minimum 0.6
Linkage system: Three-point
Dimensions:
Length: 1480 mm
Width: 2630 mm
Height: 1100 mm
Weight: 170 kg
The G-6 rotary tedder is a professional tool for farmers looking for an effective solution to accelerate the hay drying process. Combining a robust design with well-thought-out functionality, this machine is an ideal addition to the machinery of both small and medium-sized farms, contributing to increased productivity and improved quality of the dried material.
