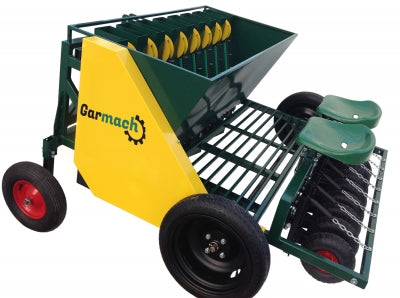

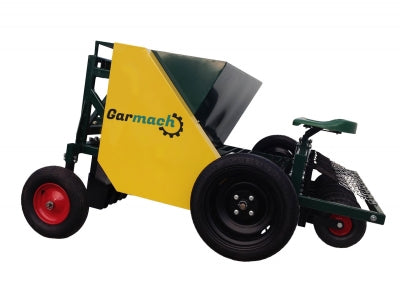

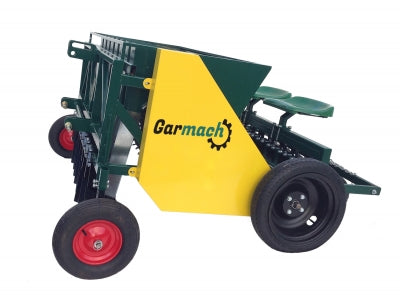

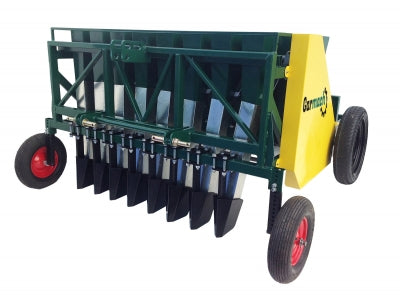

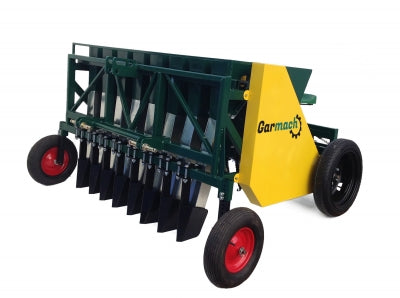

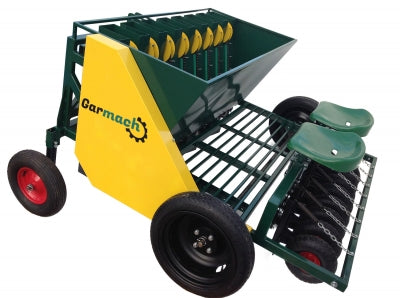

The Garmach AGP-8R garlic planter is an advanced, eight-row agricultural machine, ideal for working in high-quality soils. It offers a minimum row spacing of 15 cm and can be equipped with chains with 22, 28, and 36 mm diameters. With a width of 1050 mm, adjustable planting depth up to 160 mm (in 20 mm increments), and three seed spacing options (90-200 mm), it provides precision and versatility. Rows can be removed for flexible use. It weighs 300 kg, measures 2000 × 1650 × 950 mm, requires a 28 kW tractor, and delivers a yield of 0.2 ha/h. It is equipped with two operator seats.
Product Features
The Garmach AGP-8R garlic planter is a high-class agricultural machine that:
- Features an innovative, 8-row design for maximum efficiency during planting
- Offers an exceptionally small row spacing of 15 cm, ideal for high-quality soils
- Equipped with a chain system with carriers available in three standard diameters: 22 mm, 28 mm, and 36 mm
- Allows the removal of selected rows, allowing for flexible adaptation of the machine to current needs
- Provides a working width of 1050 mm, which translates into high work efficiency
- Allows for precise adjustment of planting depth in 20 mm increments, up to a maximum of 160 mm
- Allows for adjusting the seed spacing from 90 mm to 200 mm, with a choice of 3 settings
- Features a robust construction weighing 300 kg, ensuring stability during operation
- Dimensions 2000 x 1650 x 950 mm, which makes it a compact solution with 8 rows.
- Equipped with 2 operator seats for increased comfort.
- Versatile in use – suitable for planting spring onions, garlic, broad beans, saffron, and other tubers.
- Works with a 28 kW tractor.
- Provides a productivity of 0.2 ha/hour.
Product Benefits
Using the Garmach AGP-8R planter on your farm brings a number of tangible benefits:
- Exceptional planting precision thanks to its 8-row design and narrow row spacing.
- Optimal use of cultivated area thanks to the ability to compact rows to 15 cm.
- Versatile in use – one machine for various types of tubers and bulbs.
- Flexible in use thanks to the ability to remove selected rows, allowing for adaptation to different growing conditions.
- High planting quality. Thanks to the chain system with different diameters of carriers.
- Perfect adjustment of operating parameters to different types of tubers by replacing the carriers.
- Work comfort is ensured by ergonomically arranged operator seats.
- Precise adjustment of planting depth to the requirements of different plants and soil conditions.
- Robust construction guarantees long service life and reliability of the machine.
- Easy maintenance and ease of operation, minimizing downtime.
- A choice of three different seed spacings increases the flexibility of crop planning.
- Efficient use of the machine thanks to the ability to plant different types of tubers without the need for specialized equipment for each type.
Technical Specifications
Type of Machine: Eight-Row Garlic Planter
Model: Garmach AGP-8R
Operating Parameters:
Number of Rows: 8 (with the possibility of disassembly)
Working Width: 1050 mm
Row Spacing: 150 mm
Seed Spacing: 90 mm to 200 mm (3 selectable) (any settings)
Planting depth: adjustable in 20 mm increments up to a maximum of 160 mm
Capacity: 0.2 ha/hour
Design:
Planting mechanism type: Chain with carriers
Standard carrier diameters: 22 mm, 28 mm, 36 mm
Number of operator seats: 2
Physical parameters:
Weight: 300 kg
Dimensions (L × W × H): 2000 × 1650 × 950 mm
Requirements:
Required tractor power: 28 kW
Application:
Planting spring onions
Planting garlic
Planting broad beans
Planting saffron
Planting other bulbs
The Garmach AGP-8R garlic planter is an indispensable solution for professional farms striving for Maximize the efficiency and precision of tuber planting. Thanks to its innovative design with 8 rows with a minimum spacing of 15 cm, the ability to adjust the number of rows, and the ability to replace the carriers, this machine offers exceptional versatility and efficiency. Its robust construction, simple operation and maintenance, and the ability to work in various soil conditions make this planter an ideal choice for demanding farmers who value precision, reliability, and the ability to adapt to changing growing conditions.
