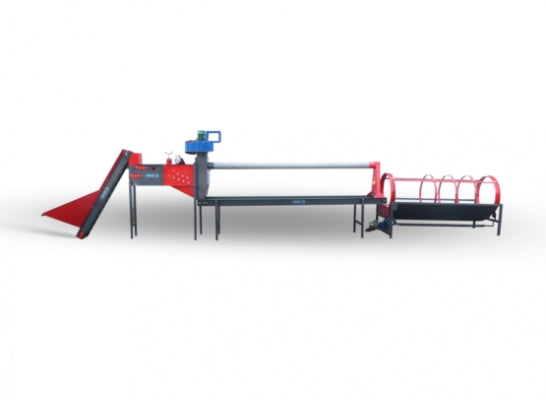

The E600 garlic clove splitter is an advanced machine for splitting garlic into cloves with a capacity of 600-800 kg/h. It features a conveyor with a 150 kg hopper, a belt and rubber plate separation system, seven rubber stars to aid the process, and a skin extraction unit. It also includes a manual finishing belt for 4-8 people and a drum for calibrating cloves in four stages (below 10 mm, 11-17 mm, 18-23 mm, and above 23 mm). The machine operates on a 380V power supply with a total power of 6 kW.
Product Features
The E600 garlic separator is an advanced device designed for professional garlic processing.
Equipped with a comprehensive system for dividing garlic bulbs into cloves

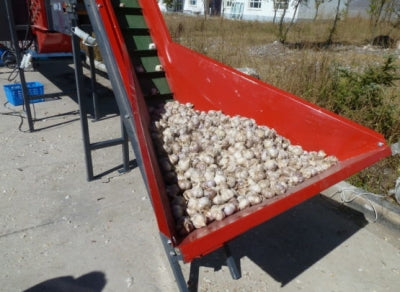

Equipped with a feed conveyor with a 150 kg capacity hopper (with the option of increasing capacity upon request)
Uses an innovative separation mechanism consisting of a soft belt and a movable rubber plate
Includes seven rubber stars to assist in completing the separation process
Equipped with an efficient suction system that removes skins and debris, leaving clean cloves
Equipped with a conveyor belt that allows 4-8 workers to manually complete the separation
Includes a drum that calibrates cloves in four dimensional stages
Guarantees high garlic quality thanks to innovative technical solutions
Can be customized to individual user needs
Product Benefits
Implementing the E600 separator in the processing process brings a number of tangible benefits Benefits: High processing capacity of 600-800 kg/h significantly accelerates the production process. Automation of the garlic clove separation process reduces manual labor. A skin and debris suction system ensures the purity of the final product. A precise clove calibration system allows for product standardization. The ability to engage 4-8 people for manual finishing ensures optimal quality control. The system's flexibility allows for processing various garlic varieties and sizes. An innovative separation mechanism with a soft belt and a movable rubber plate minimizes damage to the cloves. A 150 kg capacity hopper (expandable) ensures continuous operation. The compact design allows for efficient use of space in the processing plant.
Technical Specifications
Device Type: Garlic Separator Model: E600 Total Power: 6 kW, 380V Power Supply Capacity: 600-800 kg/h System Components:
Infeed Conveyor:
Gearbox: 0.37 kW, 380V Feed Hopper: 150 kg capacity (larger available upon request)
Separation Unit:
Belt with a rubber-covered top plate adjustable to various levels Seven rubber stars to support the separation process
Extraction Unit:
Power: 4 kW, 380V three-phase Extraction power adjustment
Conveyor Belt for Manual Finishing:
Gearmotor: 0.25 kW, 380V three-phase Workstations for 4-8 people
Serration Calibration Drum:
Stage 1: less than 10 mm Stage 2: 11-17 mm Stage 3: 18-23 mm Stage 4: Over 23 mm
The E600 garlic separator is a professional solution for processing plants that value high efficiency, precision, and final product quality. Thanks to innovative technical systems, the machine ensures efficient separation of garlic bulbs into cloves while maintaining the highest quality.
