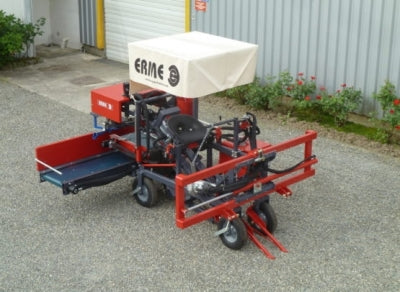

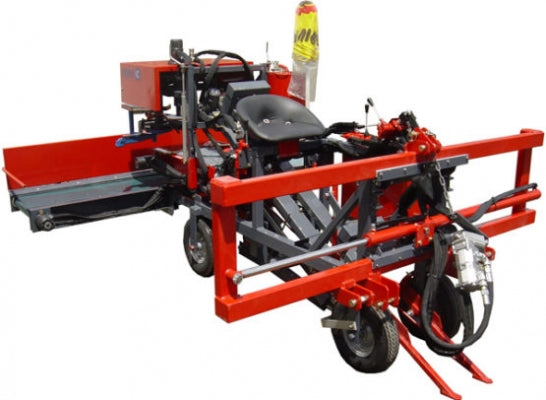

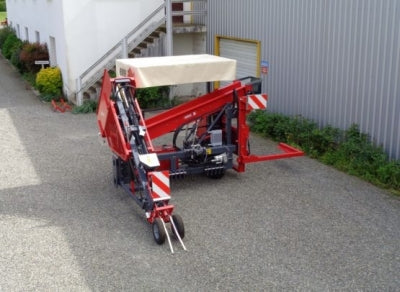

The Erme RL1 digging and binding garlic harvester is a single-row agricultural machine ideal for small and medium-sized garlic farms. Equipped with a three-point tractor linkage, a depth-adjustable share, and a binding device, it operates at a speed of 4-6 km/h, requires a 50 HP tractor, and achieves a yield of 1 ha/8 h. The machine, measuring 3.40 x 2.10 x 1.60 m, weighs 800 kg, and ensures safe harvesting from rows spaced at least 35 cm apart.
Product Features
The Erme RL1 digging and binding garlic harvester is a specialized single-row machine designed for efficient garlic harvesting.
Connects to a tractor via a three-point multi-point hitch.
Has a minimum row spacing requirement of 35 cm.
Equipped with a comprehensive harvesting system consisting of:
Garlic leaf elevator.
A garlic header with manual depth adjustment (hydraulic adjustment available as an option).
Two V-belts lifting the garlic by its leaves with manual height adjustment.
A progressive vibration system that removes excess soil at adjustable speed.
A pressure safety valve system in case of belt blockage.
A binding device with adjustable bunch size and binding height.
A lower conveyor belt under the binding device.
It offers lateral row guidance during digging thanks to a hydraulic carriage on the frame. Main unit
It features a rear conveyor belt for discharging garlic bundles to the left or right.
It is equipped with a drive system with two hydraulic pumps with a multiplier on the tractor's PTO shaft (540 rpm).
It includes a hydraulic oil tank with a cooling system.
Product benefits
Using the ERME RL1 combine harvester on your farm brings a number of tangible benefits: Harvesting efficiency of 1 hectare in 8 hours significantly speeds up the harvesting process. Automatic binding of garlic into bundles ensures safe drying and preservation. A progressive vibration system effectively removes excess soil, increasing the cleanliness of the harvested product. Adjustable operating parameters (digging depth, lifting height, bundle size) allow for adapting the machine to different garlic varieties and soil conditions. A safety valve system protects the machine from damage if the belts become blocked. Compact dimensions and relatively low weight enable easy operation and transport. Combine Harvester Low tractor power requirements (50 HP) make the machine accessible to a wide range of farmers. Minimum row spacing of 35 cm allows for optimal use of the cultivated area. A hydraulic carriage on the main frame ensures precise guidance of the harvester along the rows.
Garlic Leaf Lifter Ploughshare with depth adjustment (manual, optional hydraulic) Two V-belts with height adjustment Progressive vibration system with speed adjustment Pressure safety valve system Binding device with adjustable bunch size and binding height Underneath conveyor belt
Guidance System: Hydraulic carriage on the main frame (left/right) Crop discharge system: Rear conveyor belt (left/right) Drive: Two hydraulic pumps with a multiplier on the tractor PTO shaft (540 rpm) Cooling: Hydraulic oil tank with cooling system Operating parameters:
Rated speed: 4-6 km/h Required tractor power: 50 HP Harvest capacity: 1 ha/8 h
Dimensions:
Length: 3.40 m Width: 2.10 m Height: 1.60 m
Weight: 800 kg
The Erme RL1 digging and binding garlic harvester is a professional solution for farms looking to increase the efficiency of garlic cultivation by combining traditional methods with modern harvesting technology, guaranteeing high-quality end products.
