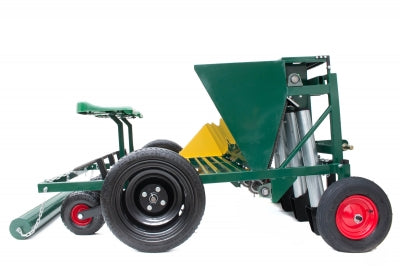

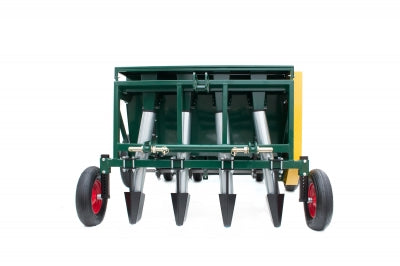

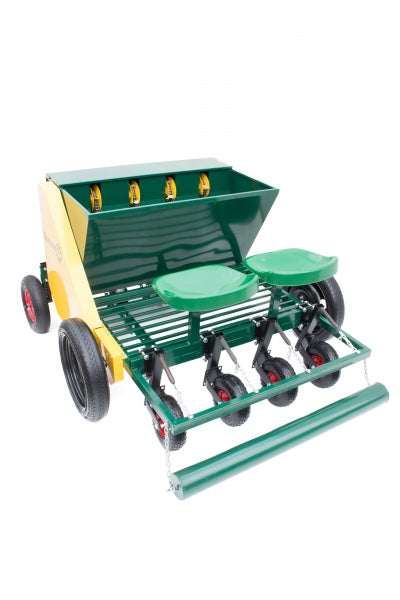

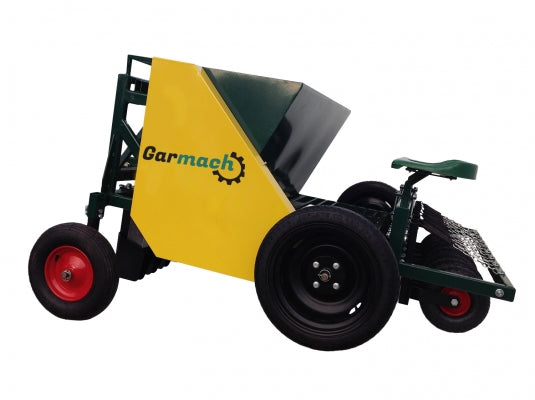

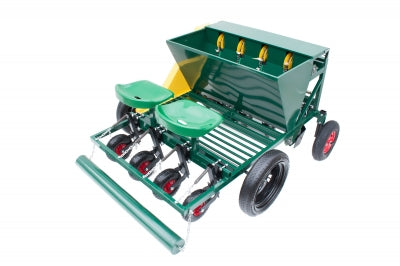

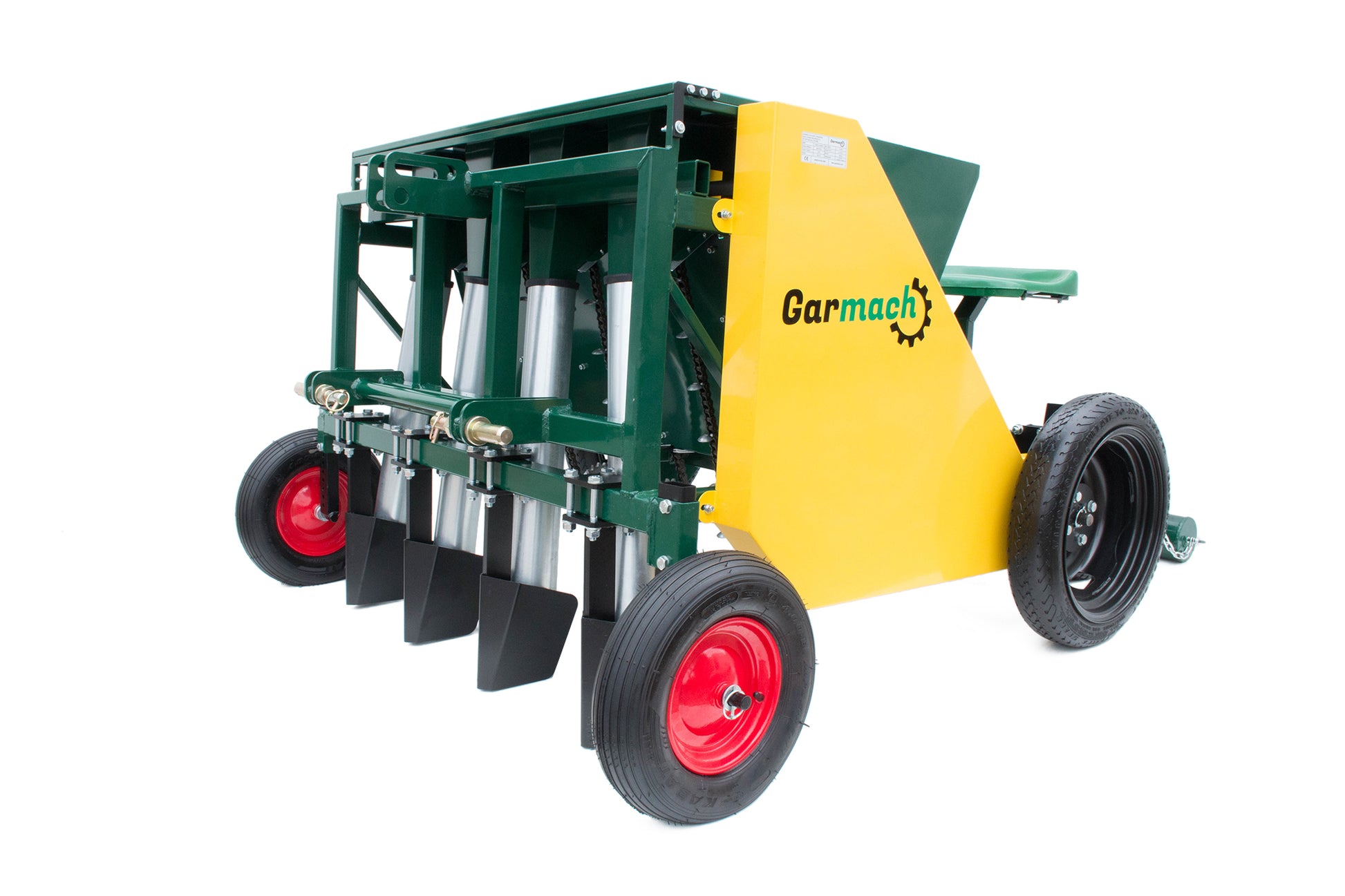

The Garmach AGP-4R spring onion planter is a simple, fully mechanical, 4-row chain-driven machine for small and medium-sized farms. It allows planting spring onions, garlic, broad beans, saffron, and flowering bulbs (gladioli, tulips). Equipped with tines with diameters of 22, 28, and 36 mm (with the option of custom sizes), it offers smooth adjustment of row spacing (200-330 mm), seed spacing (90-200 mm), and planting depth (up to 160 mm). Weighing 260 kg and measuring 2000 × 1550 × 950 mm, it requires a 28 kW tractor and delivers a yield of 0.2 ha/h.
The Garmach AGP-4R spring onion planter is a versatile agricultural device that:
- Features a 4-row design ideal for small and medium-sized farms
- Its completely mechanical, simple construction allows for easy repairs and modifications
- It is equipped with a chain system with standard tines of 22 mm, 28 mm, and 36 mm
- It offers the option of ordering chains with non-standard tine diameters tailored to individual needs
- It allows for the purchase of additional chain sets with different tine diameters
- Provides smooth row spacing adjustment within a wide range from 200 mm to 330 mm
- Allows you to adjust the seed spacing from 90 mm to 200 mm, with the option of selecting 3 custom settings
- Enables gradual adjustment of planting depth in 20 mm increments, up to a maximum of 160 mm
- It has a frame width of 980 mm, making it compact solution
- Equipped with 2 seats for operators
- Versatile use – suitable for planting spring onions, garlic, broad beans, saffron, gladioli, tulips, and other tubers
- Requires a 28 kW tractor for efficient operation
Product Benefits
Using the Garmach AGP-4R planter on your farm brings a number of tangible benefits:
Significant time and labor savings compared to manual planting
Versatile use – one machine for various types of tubers and bulbs
Precise planting material placement thanks to the chain system
Ability to adjust operating parameters to various crops and soil conditions
A wide range of row spacing adjustments (200-330 mm) provides flexibility in crop planning
Simple mechanical design facilitates maintenance and repairs without the need to call a specialist service
Compact dimensions enable easy storage and transport
Efficiency of 0.2 ha/hour allows for effective management of even Larger areas
Possibility of individual modifications and adaptation of the machine to the specific needs of the farm
Compatibility with popular tractor models with an output of 28 kW
Long service life thanks to the robust design and high-quality workmanship
The possibility of expanding with additional sets of chains increases the versatility of the device
Technical Specifications
Device Type: Chain planter for spring onions and other bulbs
Model: Garmach AGP-4R
Operating Parameters:
Number of rows: 4
Row spacing: adjustable from 200 mm to 330 mm (continuous adjustment)
Seed spacing: from 90 mm to 200 mm (3 freely selectable settings)
Planting depth: adjustable in 20 mm increments up to a maximum of 160 mm
Capacity: 0.2 ha/hour
Design:
Frame width: 980 mm
Planting mechanism type: Chain with Drivers
Standard driver diameters: 22 mm, 28 mm, 36 mm
Number of operator seats: 2
Physical parameters:
Weight: 260 kg
Dimensions (L × W × H): 2000 × 1550 × 950 mm
Requirements:
Required tractor power: 28 kW
Applications:
Planting spring onions
Planting garlic
Planting broad beans
Planting saffron
Planting flower bulbs (gladioli, tulips, and others)
The Garmach AGP-4R spring onion planter is the ideal solution for small and medium-sized farms looking for versatile, reliable, and easy-to-use equipment for precise planting of various types of bulbs. Thanks to its simple mechanical structure, wide adjustment possibilities and solid workmanship, it is a valuable investment that will significantly increase work efficiency and crop quality.
